Visual Guide: Importing GLTF Files into Unity and Animating Them ​

Install the Unity glTFast package ​

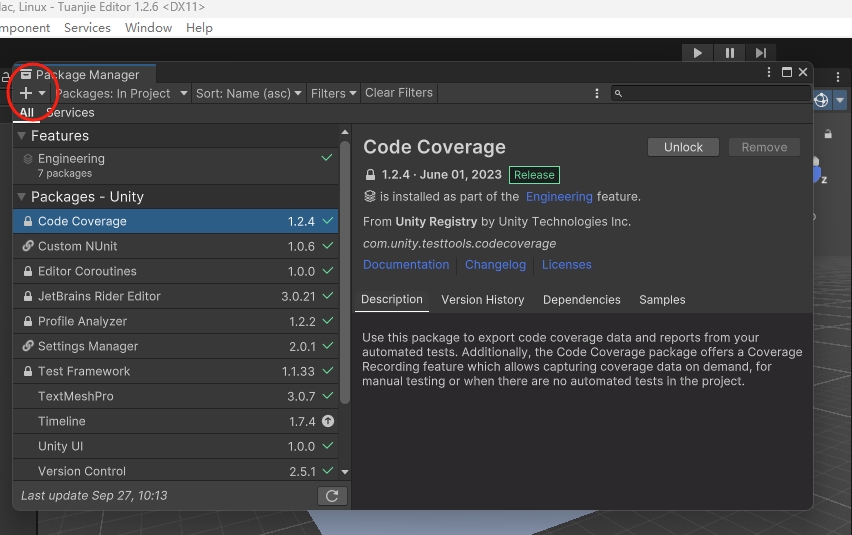

Open Window->Package Manager, Click Add(+)

Open Unity-Package Manager

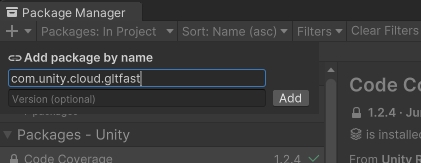

Click Add package by name..., input com.unity.cloud.gltfast to add the Unity glTFast package

Add Unity glTFast Package

A simple glTF file for test ​

test.gltf

json
{
  "scene" : 0,
  "scenes" : [ {
    "nodes" : [ 0, 1 ]
  } ],

  "nodes" : [ {
    "name": "Node0",
    "skin" : 0,
    "mesh" : 0
  }, {
    "name": "Node1",
    "children" : [ 2 ]
  }, {
    "name": "Node2",
    "translation" : [ 0.0, 1.0, 0.0 ],
    "rotation" : [ 0.0, 0.0, 0.0, 1.0 ]
  } ],

  "meshes" : [ {
    "primitives" : [ {
      "attributes" : {
        "POSITION" : 1,
        "JOINTS_0" : 2,
        "WEIGHTS_0" : 3
      },
      "indices" : 0,
      "material" : 0
    } ]
  } ],

  "skins" : [ {
    "inverseBindMatrices" : 4,
    "joints" : [ 1, 2 ]
  } ],

  "animations" : [ {
    "channels" : [ {
      "sampler" : 0,
      "target" : {
        "node" : 2,
        "path" : "rotation"
      }
    } ],
    "samplers" : [ {
      "input" : 5,
      "interpolation" : "LINEAR",
      "output" : 6
    } ]
  } ],

  "buffers" : [ {
    "uri" : "data:application/gltf-buffer;base64,AAABAAMAAAADAAIAAgADAAUAAgAFAAQABAAFAAcABAAHAAYABgAHAAkABgAJAAgAAAAAvwAAAAAAAAAAAAAAPwAAAAAAAAAAAAAAvwAAAD8AAAAAAAAAPwAAAD8AAAAAAAAAvwAAgD8AAAAAAAAAPwAAgD8AAAAAAAAAvwAAwD8AAAAAAAAAPwAAwD8AAAAAAAAAvwAAAEAAAAAAAAAAPwAAAEAAAAAA",
    "byteLength" : 168
  }, {
    "uri" : "data:application/gltf-buffer;base64,AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAEAAAAAAAAAAAAAAAAAAAABAAAAAAAAAAAAAAAAAAAAAQAAAAAAAAAAAAAAAAAAAAEAAAAAAAAAAAAAAAAAAAABAAAAAAAAAAAAAAAAAAAAAQAAAAAAAAAAAAAAAAAAAAEAAAAAAAAAAAAAAAAAAAABAAAAAAAAAAAAAAAAAAAAgD8AAAAAAAAAAAAAAAAAAIA/AAAAAAAAAAAAAAAAAABAPwAAgD4AAAAAAAAAAAAAQD8AAIA+AAAAAAAAAAAAAAA/AAAAPwAAAAAAAAAAAAAAPwAAAD8AAAAAAAAAAAAAgD4AAEA/AAAAAAAAAAAAAIA+AABAPwAAAAAAAAAAAAAAAAAAgD8AAAAAAAAAAAAAAAAAAIA/AAAAAAAAAAA=",
    "byteLength" : 320
  }, {
    "uri" : "data:application/gltf-buffer;base64,AACAPwAAAAAAAAAAAAAAAAAAAAAAAIA/AAAAAAAAAAAAAAAAAAAAAAAAgD8AAAAAAAAAAAAAAAAAAAAAAACAPwAAgD8AAAAAAAAAAAAAAAAAAAAAAACAPwAAAAAAAAAAAAAAAAAAAAAAAIA/AAAAAAAAAAAAAIC/AAAAAAAAgD8=",
    "byteLength" : 128
  }, {
    "uri" : "data:application/gltf-buffer;base64,AAAAAAAAAD8AAIA/AADAPwAAAEAAACBAAABAQAAAYEAAAIBAAACQQAAAoEAAALBAAAAAAAAAAAAAAAAAAACAPwAAAAAAAAAAkxjEPkSLbD8AAAAAAAAAAPT9ND/0/TQ/AAAAAAAAAAD0/TQ/9P00PwAAAAAAAAAAkxjEPkSLbD8AAAAAAAAAAAAAAAAAAIA/AAAAAAAAAAAAAAAAAACAPwAAAAAAAAAAkxjEvkSLbD8AAAAAAAAAAPT9NL/0/TQ/AAAAAAAAAAD0/TS/9P00PwAAAAAAAAAAkxjEvkSLbD8AAAAAAAAAAAAAAAAAAIA/",
    "byteLength" : 240
  } ],

  "bufferViews" : [ {
    "buffer" : 0,
    "byteLength" : 48,
    "target" : 34963
  }, {
    "buffer" : 0,
    "byteOffset" : 48,
    "byteLength" : 120,
    "target" : 34962
  }, {
    "buffer" : 1,
    "byteLength" : 320,
    "byteStride" : 16
  }, {
    "buffer" : 2,
    "byteLength" : 128
  }, {
    "buffer" : 3,
    "byteLength" : 240
  } ],

  "accessors" : [ {
    "bufferView" : 0,
    "componentType" : 5123,
    "count" : 24,
    "type" : "SCALAR"
  }, {
    "bufferView" : 1,
    "componentType" : 5126,
    "count" : 10,
    "type" : "VEC3",
    "max" : [ 0.5, 2.0, 0.0 ],
    "min" : [ -0.5, 0.0, 0.0 ]
  }, {
    "bufferView" : 2,
    "componentType" : 5123,
    "count" : 10,
    "type" : "VEC4"
  }, {
    "bufferView" : 2,
    "byteOffset" : 160,
    "componentType" : 5126,
    "count" : 10,
    "type" : "VEC4"
  }, {
    "bufferView" : 3,
    "componentType" : 5126,
    "count" : 2,
    "type" : "MAT4"
  }, {
    "bufferView" : 4,
    "componentType" : 5126,
    "count" : 12,
    "type" : "SCALAR",
    "max" : [ 5.5 ],
    "min" : [ 0.0 ]
  }, {
    "bufferView" : 4,
    "byteOffset" : 48,
    "componentType" : 5126,
    "count" : 12,
    "type" : "VEC4",
    "max" : [ 0.0, 0.0, 0.707, 1.0 ],
    "min" : [ 0.0, 0.0, -0.707, 0.707 ]
  } ],
  "materials" : [
    {
      "name": "MyMaterial",
      "doubleSided": true,
      "pbrMetallicRoughness": {
        "baseColorFactor": [ 1.000, 0.0, 0.0, 1.0 ],
        "metallicFactor": 0.5,
        "roughnessFactor": 0.1
      }
    }
  ],
  "asset" : {
    "version" : "2.0"
  }
}

Save the above content as a text file, and rename to test.gltf, move it to Assets folder.

The editor should recognize the gltf file. If don't, please exit unity and reopen the project.

Unity glTF

I add a red material to the model after writing this tutorial, so you may see a red plane, There is nothing wrong.

Drag the glTF file to the scene ​

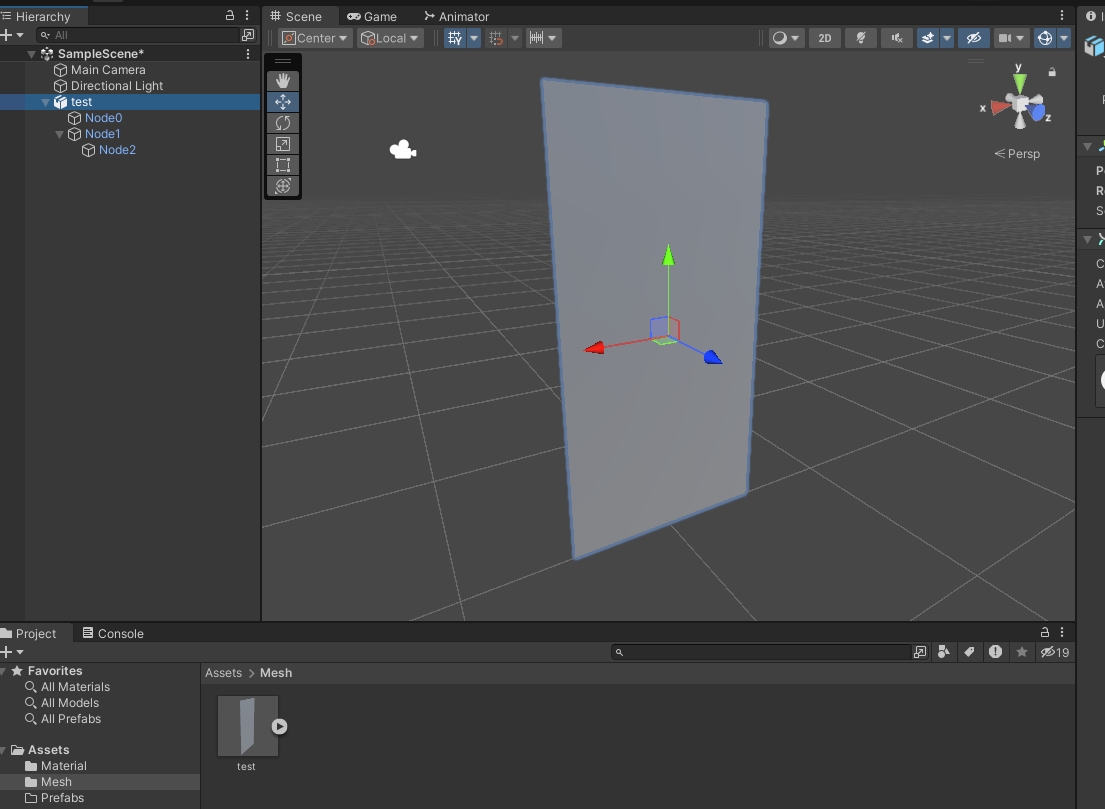

Unity glTF on scene

  • Nodes in the gltf file are map as GameObject in unity, The hierarchy is consistent.
  • For node with mesh, The vertex data is referenced by the Mesh Renderer attribute, If the vertices are skinned, the Skined Mesh renderer is used

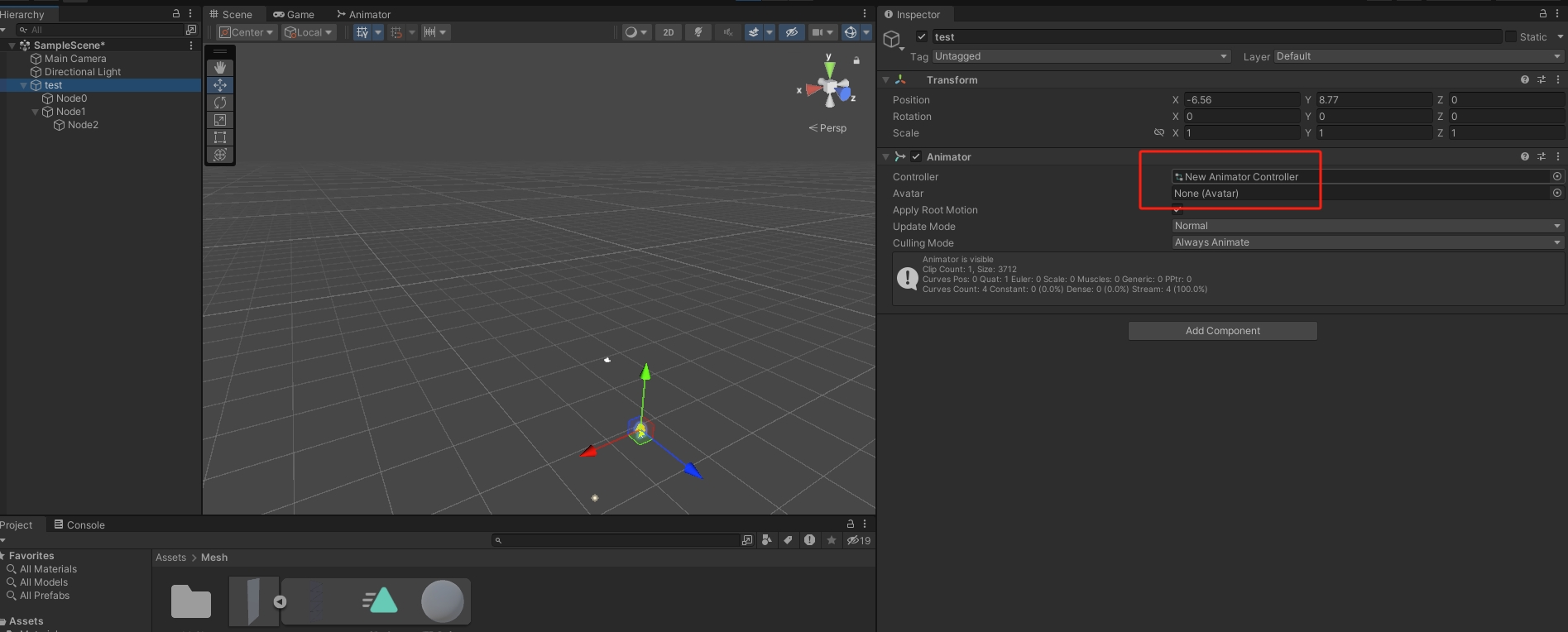

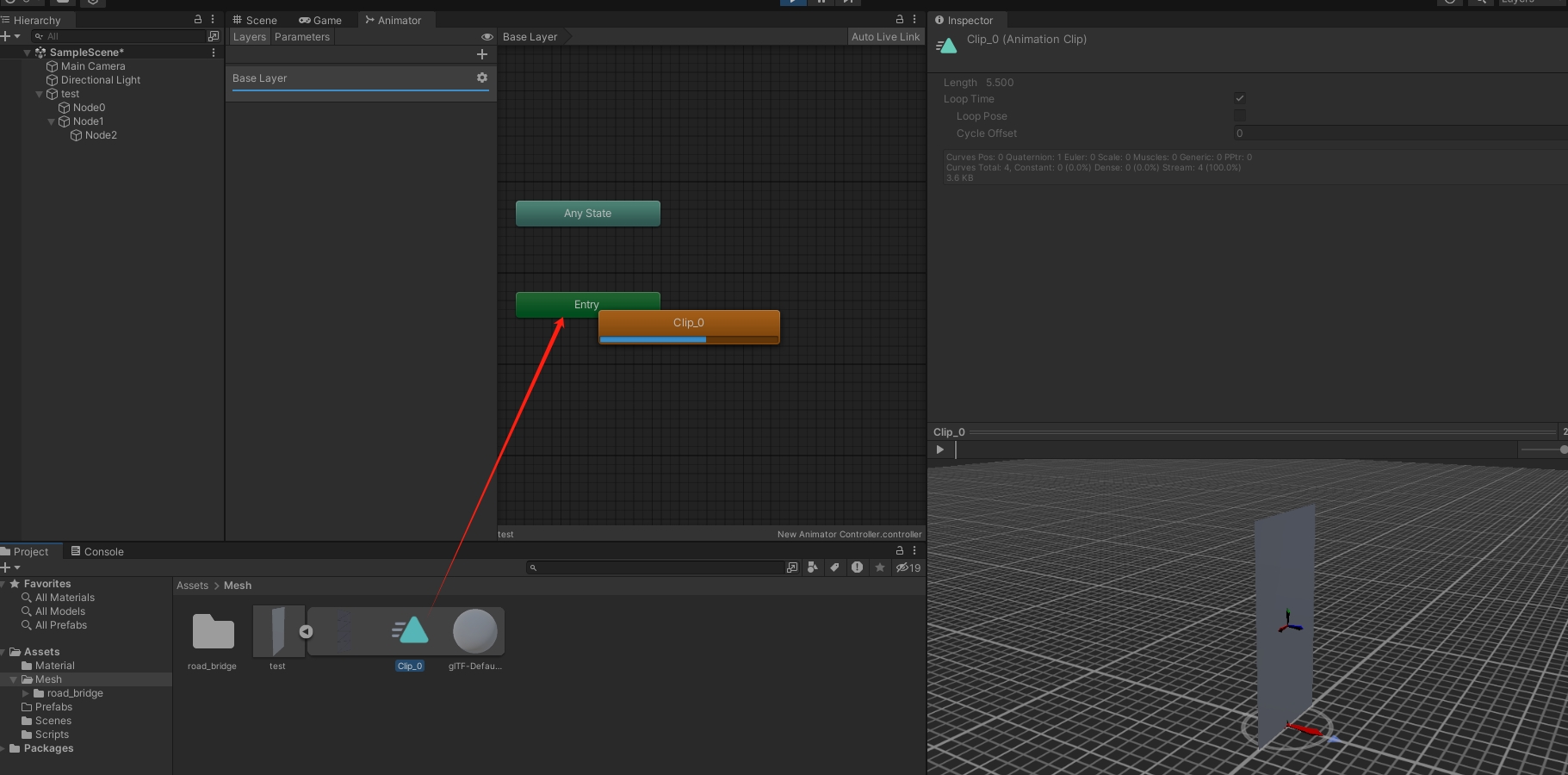

  • To Animate the mesh, create a Animation Controller and then drag the clip from gltf to the Entry of the controller, Finally, references the Aniamtor Controller to the Animator Property

Animation Controller

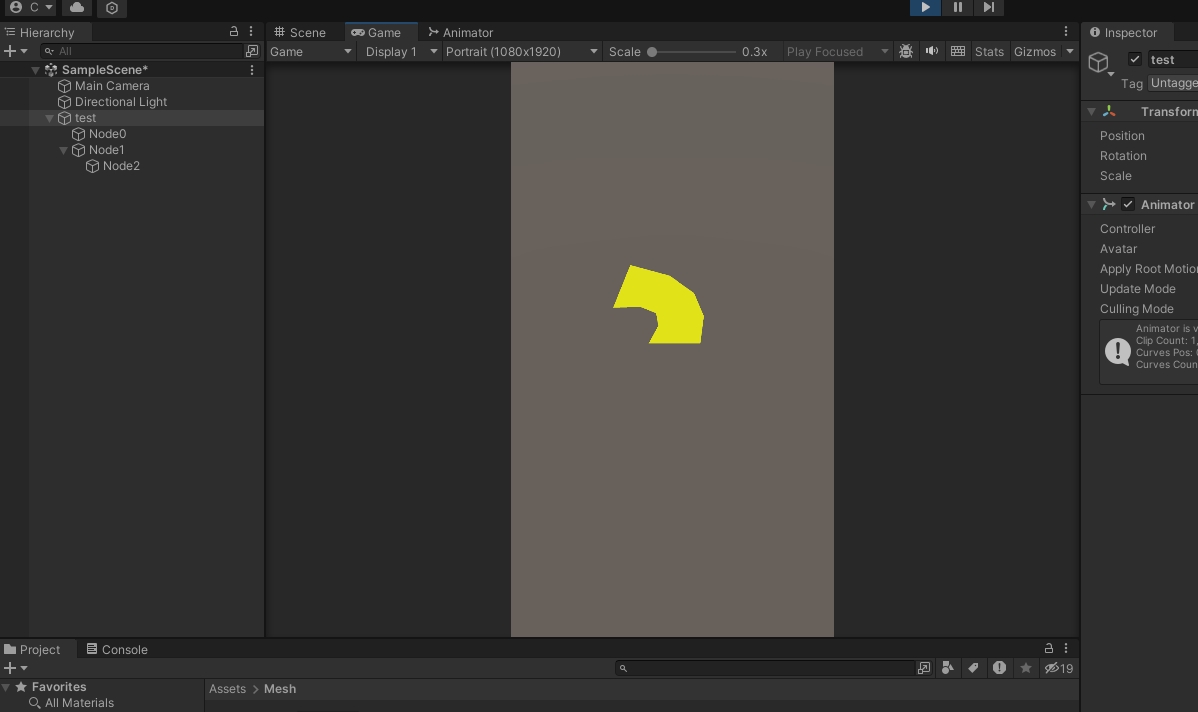

Animate glTF

Animate glTF
